Foundation Piers in Willard, Springfield, Ozark, and Nearby Areas

3.0-inch Outside Diameter (O.D.) x 0.120-inch wall tube steel, ultimate tensile strength = 80,000 psi (min.), yield tensile strength = 70,000 psi (min.)

2.75-inch O.D. x 0.120-inch wall tube steel, ultimate tensile strength = 80,000 psi (min.), yield tensile strength = 70,000 psi (min.)

• Bracket Tube
  3.875-inch O.D. x 3.125-inch Inside Diameter (I.D.) x 10-inch long DOM mechanical steel tubing conforming to ASTM 513 ‘ Type 5 / Grade 1026. Ultimate tensile strength = 100,000 psi (min.), yield tensile strength = 90,000 psi (min.)

• Angle Bracket
  0.5-inch thick flat plate conforming to ASTM A-36 hot rolled steel bent to form a 90-degree angle with equal sides of approximately 8 inches. Ultimate tensile strength = 58,000 psi (min.), yield tensile strength = 36,000 psi (min.)

• Bracket Support Strap
  0.375-inch thick x 3 inches wide x 21.25 inches flat bar conforming to ASTM A-36 hot rolled steel which is bent into a “horseshoe” shape around the bracket tube. Ultimate tensile strength = 58,000 psi (min.), yield tensile strength = 36,000 psi (min.)

• Top Plate
  0.75-inch thick x 5.5 inches wide x 9.5 inches long conforming to ASTM A-36 hot rolled steel. Ultimate tensile strength = 58,000 psi (min.), yield tensile strength = 36,000 psi (min.)

• Cap Plate
  1.0-inch thick x 4.0 inches wide x 8.5 inches long conforming to ASTM A-36 hot rolled steel. Ultimate tensile strength = 58,000 psi (min.), yield tensile strength = 36,000 psi (min.)

• Weld
  E71T1, minimum tensile strength = 71,000 psi ‘ performed by AWS certified welder

• Threaded Rod
  0.75-inch diameter x 12 inches long ASTM A311 ‘ Class B / Grade 8 Zinc Plated. Ultimate tensile strength = 150,000 psi, yield tensile strength = 130,000 psi

Foundation Pier System, which includes pier tube, tube reinforcing insert and foundation bracket, tested by an Independent Laboratory to peak loads exceeding 70,000 pounds (70 kips).

See ICC-ES Legacy Report #22-03 prepared by the International Code Council

• Push Pier Evaluation Report

• Grip-Tite Manufacturing Co Push Piers Technical Key

Foundation piers can stabilize a settling foundation, and some projects may allow the contractor to recover part of the lost elevation when conditions permit. The main goal is to transfer the structure’s load to stronger material deeper underground so the foundation no longer relies on the unstable soil that caused it to settle.

Foundation piers extend below unstable or weak surface soils until they reach soil or bearing material that can support the structure more effectively. The pier system then transfers the foundation load downward, helping stabilize areas that have settled or shifted.

The number of piers, installation depth, foundation access, soil conditions, landscaping, and amount of settlement all affect the schedule. A foundation inspection gives the contractor the information needed to determine the repair layout and provide a more useful project timeline.

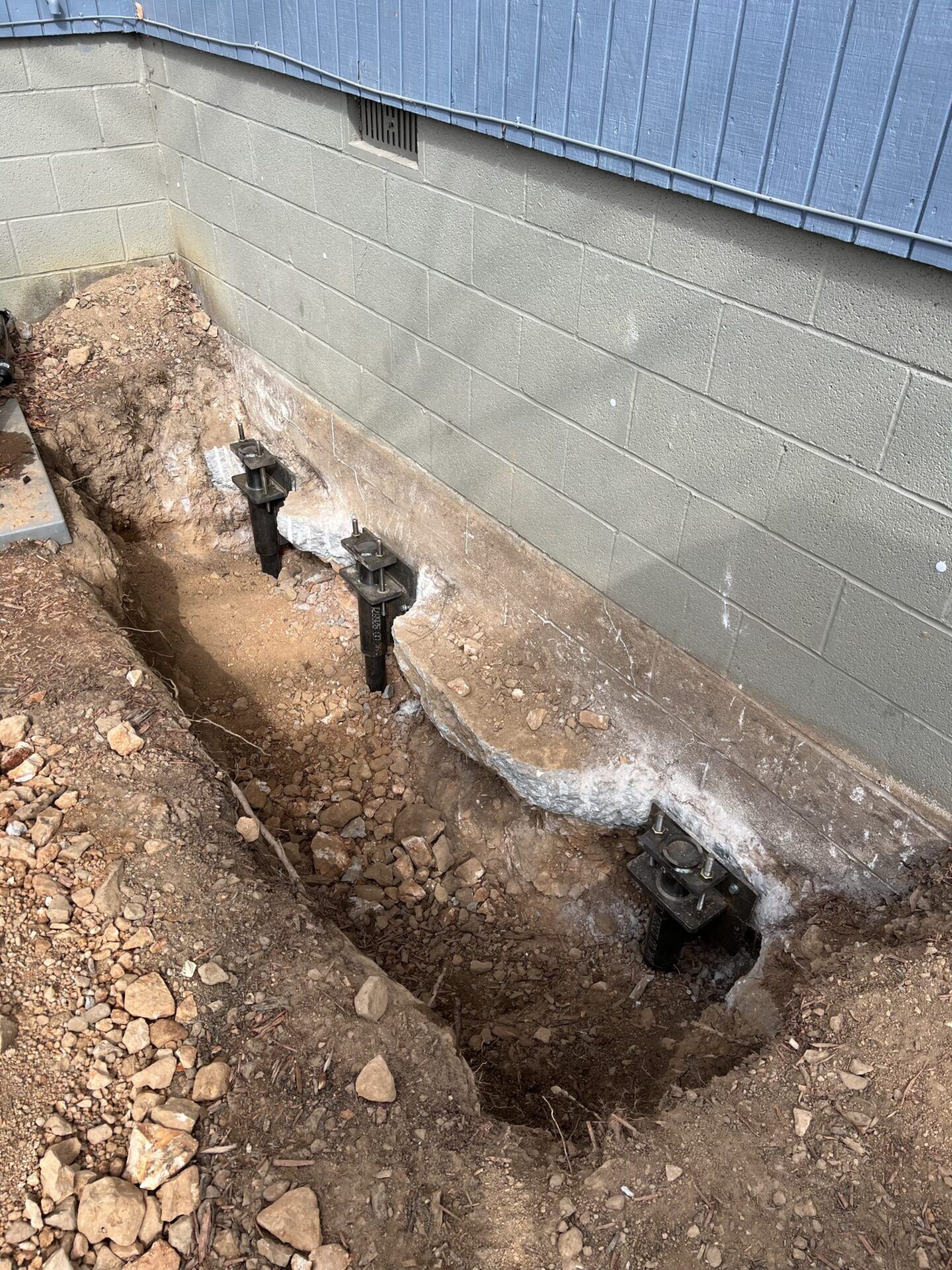

Push piers use the weight of an existing structure as resistance while hydraulic equipment drives steel pier sections toward suitable load-bearing material. Helical piers screw into the ground using hydraulic torque, which can make them useful for lighter structures such as porches, decks, additions, and some garage slab foundations.

A home may need piers when foundation settlement causes sinking areas, growing cracks, uneven floors, sticking doors or windows, or other movement that points to inadequate support beneath the foundation. An inspection should first confirm the cause, because cracks and uneven floors can develop for reasons that don’t require pier installation.
